EPIC QT 300 | 10W
Product category: LED trimless recessed downlight
Adjustability: 355° – Tilting 30°
Power: 10W
Light source: LED cob integrated
CRI > 90
CCT: 2700K – 3000K – 4000K
Luminaire luminous flux 3000K:
10W: 498 lm
Optic: Lens, backward optic high visual comfort
UGR < 10
Screening angle: 45°
Beam angle: 15° – 25° – 36° – 60°
Driver: External, Included
Insulation class: II
Driver input: 220 – 240 Vac / 50-60 Hz
Control: ON-OFF, 0-10V, DALI, TRIAC
Luminaire input
310: 34-36 Vdc / 250 mA
IP grade: IP20
Material: Entirely made of die-cast – turned – molded aluminum
Body surface treatment: Electrostatic spray processing
Reflector finish: Matt white, Matt black, Reflective nickel, Reflective gold
Optical accessories: Honeycomb louver anti-glare, Blade lens, Diffusing lens

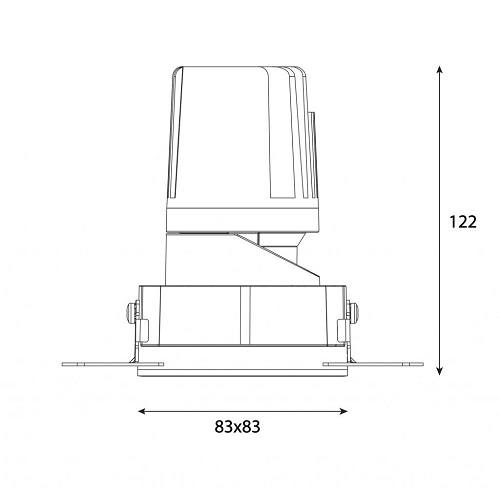

Dimension: 83 x 83 x H 122 mm
Cut off: 85 x 85 mm
Adjustability: 355° – Tilting 30°
Power: 10W
Light source: LED cob integrated
CRI > 90
CCT: 2700K – 3000K – 4000K
Luminaire luminous flux 3000K:
10W: 498 lm
Optic: Lens, backward optic high visual comfort
UGR < 10
Screening angle: 45°
Beam angle: 15° – 25° – 36° – 60°
Driver: External, Included
Insulation class: II
Driver input: 220 – 240 Vac / 50-60 Hz
Control: ON-OFF, 0-10V, DALI, TRIAC
Luminaire input
310: 34-36 Vdc / 250 mA
IP grade: IP20
Material: Entirely made of die-cast – turned – molded aluminum
Body surface treatment: Electrostatic spray processing
Reflector finish: Matt white, Matt black, Reflective nickel, Reflective gold
Optical accessories: Honeycomb louver anti-glare, Blade lens, Diffusing lens
Dimension: 83 x 83 x H 122 mm
Cut off: 85 x 85 mm
INVISIBLE LIGHT SOURCE
UGR<16
EPIC recessed downlight is designed in all its parts to obtain maximum visual comfort: thanks to the rearward optic,
the anti-glare filter and the reflectors designed to respect a 45 ° shielding angle, the source is low glare even when
the product is oriented thanks to the tilting optical compartment and the fixed reflector. Three optional optical accessories:
Honeycomb filter (HB), diffusing filter (D), blade filter (B).
