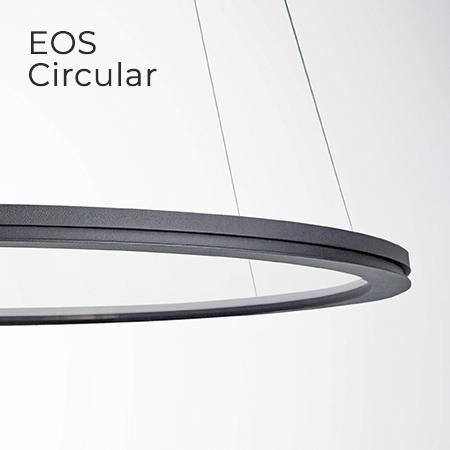

EOS CIRCULAR

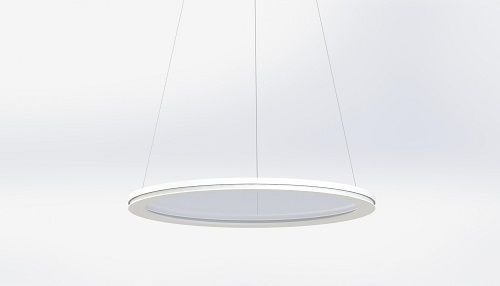

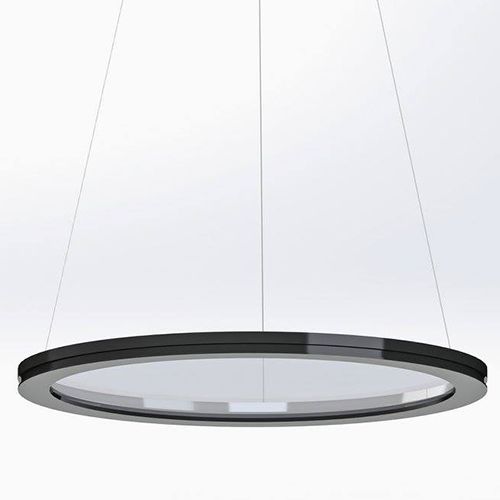

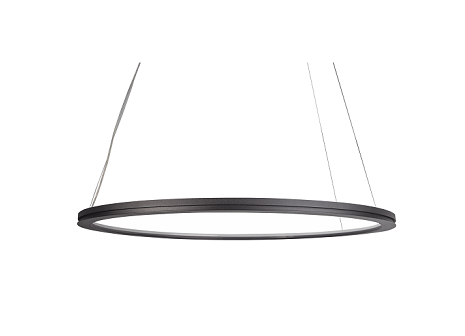

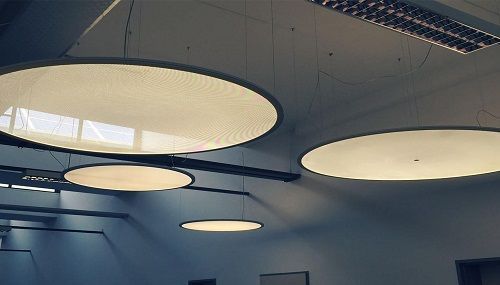

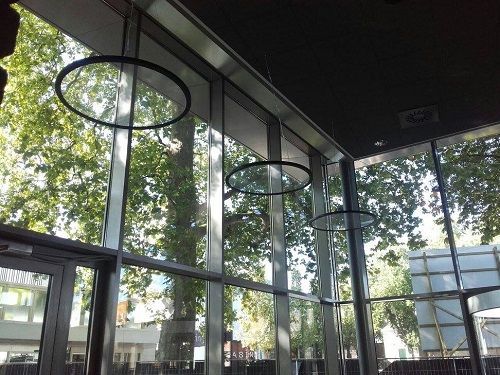

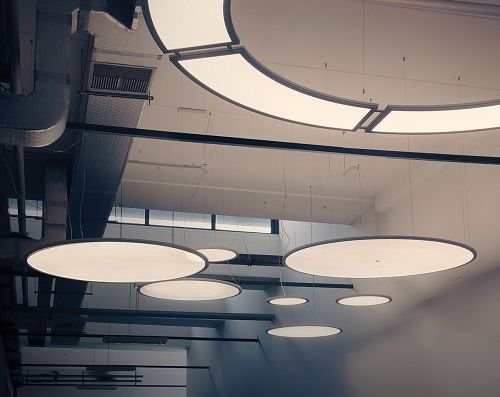

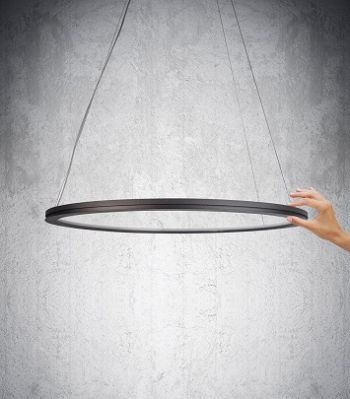

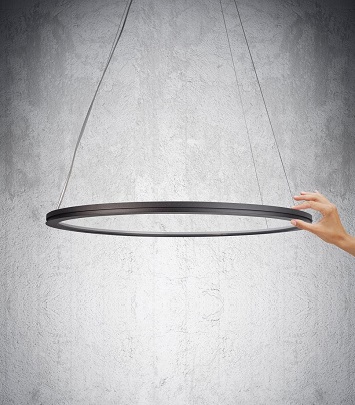

EOS Circular is defined by a slim frame around a transparent panel which makes the luminaire an elegant and unobtrusive element in the room. When switched on, the luminaire changes its form and creates the perception of pleasant circular light hanging in the air.
Κωδικός : #EOSCIR
Technical data
| Housing |
High-quality aluminium housing with powder |
| Sizes |
470, 560, 650, 740, 825, 1000, 1200, 1500, 1800, 2000mm |
| Luminary efficiency | 94lm/W |
| System power | 39 – 140W |
| Color rendering | CRI > 80 / CRI > 90 (on request) |
| Color consistency | MacAdam Step 3 |
| Direct light output (lm) | 1651 - 5037lm |
| Color temperature (K) | 2700 / 3000 / 4000 / 5000K |
| UGR | <19 |
| Lighting control | No dimmable / DALI / Casambi |
| Optics | High-quality PMMA prismatic sheet |

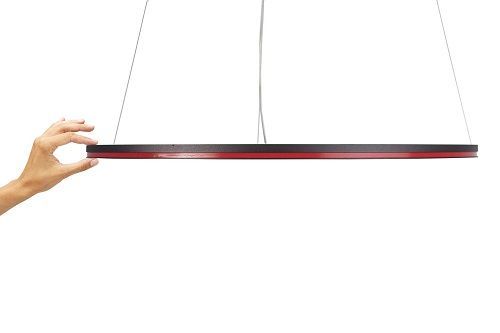

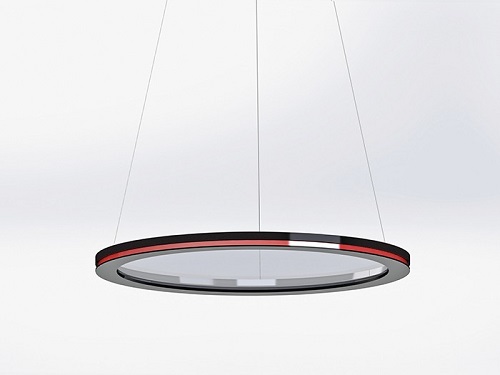

| Options |
Coloured detail in the housing in black, white or red |
| Rated life | L80 B20 at 100.000 h, Ta=25 °C ambient temperature |

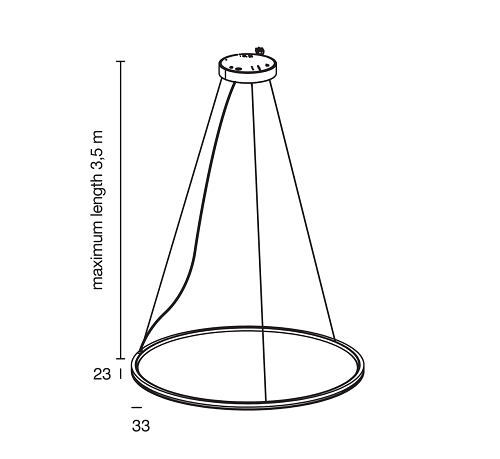

Suspension Type
Standard

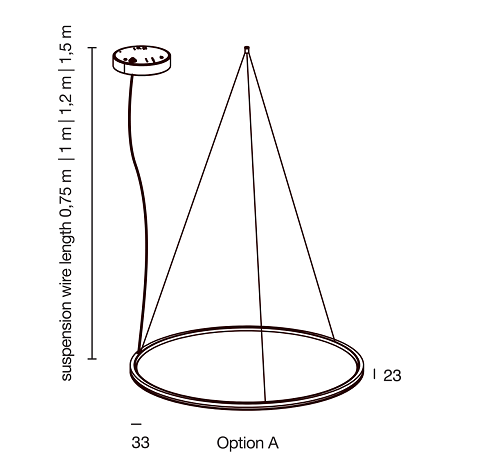

Option 2a

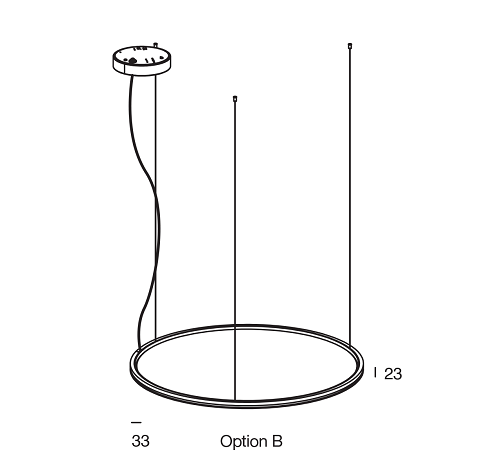

Option 2b*
*Option 2b

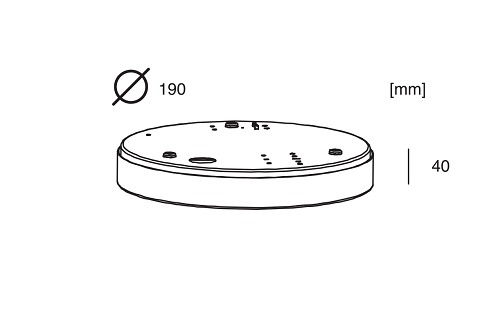

| Size | Number of pendant kits required | Number of rosettes required |
| Up to 852 mm | 3 | 1 |
| 1000mm | 3 | 2 |
| 1200 and 1500mm | 6 | 2 |
| 1800 and 2000mm | 8 + 1 | 3 |
For dimensions bigger than 1000mm in circumference, only Option 2B is possible and 2 rosettes are required.
