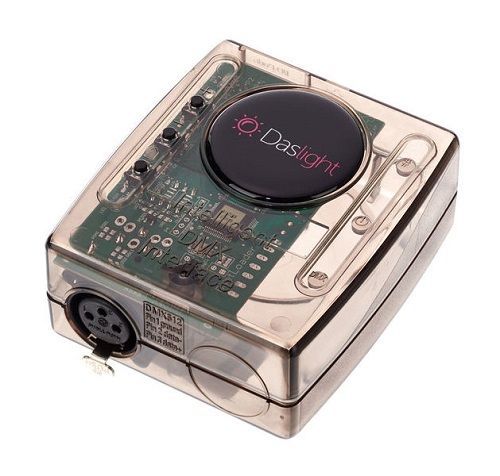

- Mini USB-DMX Interface
- 1 DMX OUT Universe (128 Channels)
- 128k Stand Alone Memory

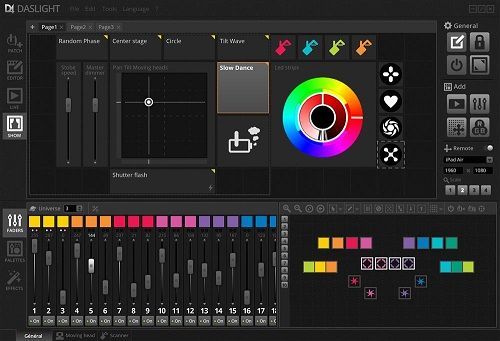

- Works with DVC4 Software in Express Mode
- Delivered with a USB Cable
Full Description

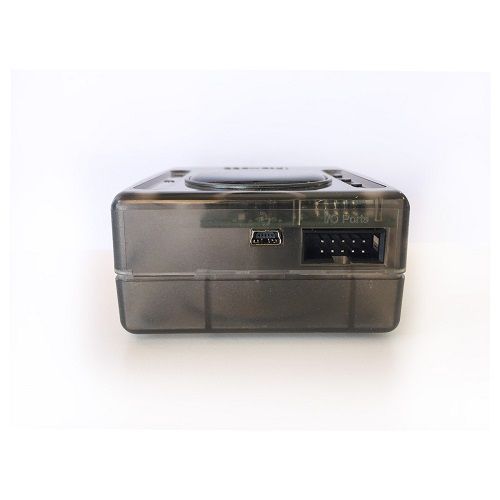

Dry Contact Ports
Trigger scenes in both live and stand alone mode via the 8 dry contact ports. Bridge the ground pin with pins 1-8 of the HE10 connector in order to start scenes from a push button or relay. The 8 ports can be combined in binary for up to 255 triggers.
Stand Alone
Each Daslight interface comes with either flash or microSD memory, allowing for programmed shows to be run in stand alone mode without a computer. Stand alone mode is perfect for smaller shows where a computer is not needed, as a backup in case of computer failure, or for architectural installations. The scenes can be changed via + and - push buttons on the controller, the dry contact ports, or over a network using the Easy Remote iPhone/iPad/Android app (DVC4 GZM).
Specifications
- Live Channels: 128*
- Standalone Channels: 128*
- Mode: Express (32 steps per scene, 4 scenes playing simultaneously)*
- Software: DVC3, Daslight 4
- Ethernet: No
- Connector: Mini USB
- Memory: 64k
- Clock/Calendar: No
- Dry Contact Ports: 8**
